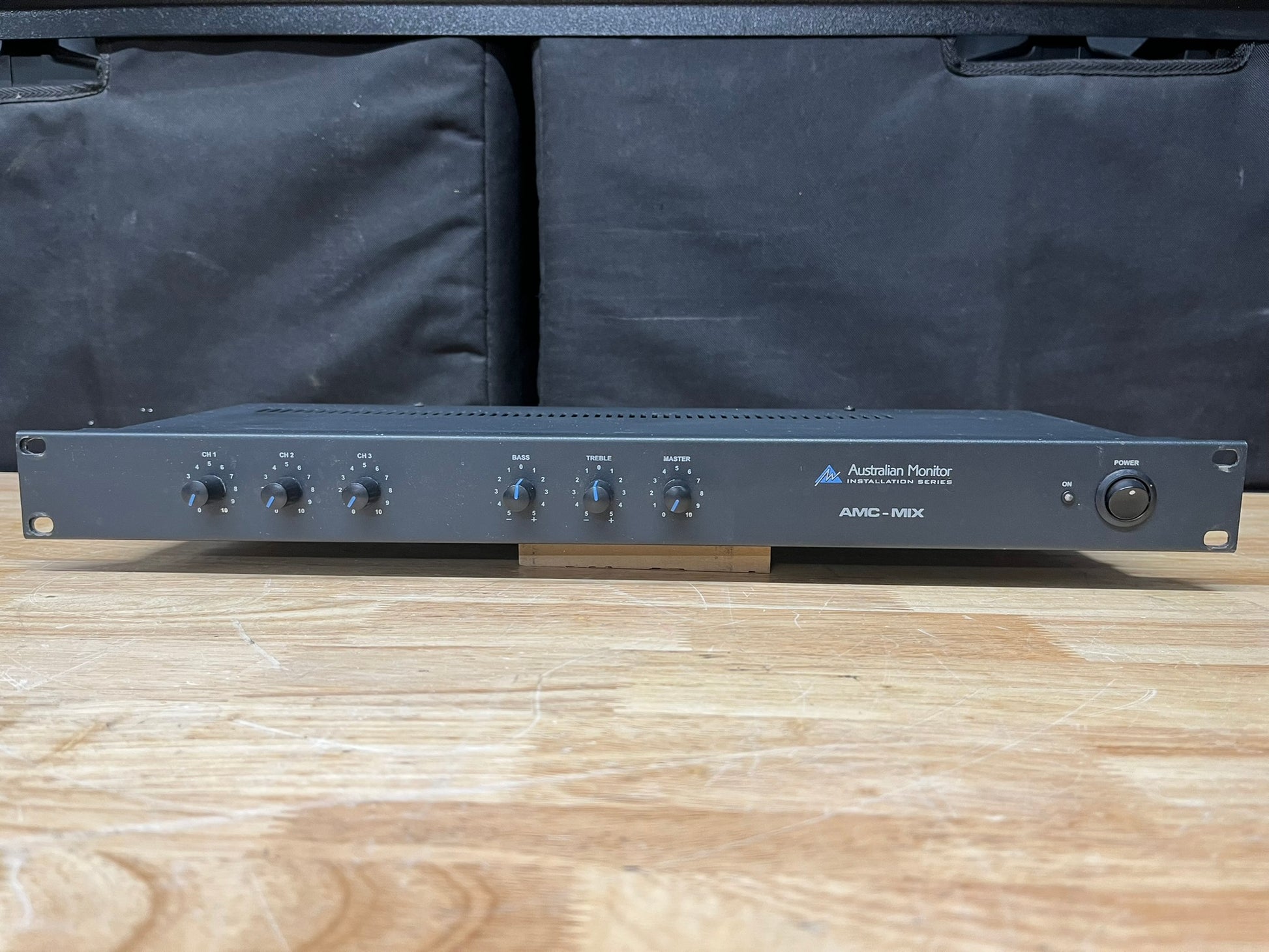

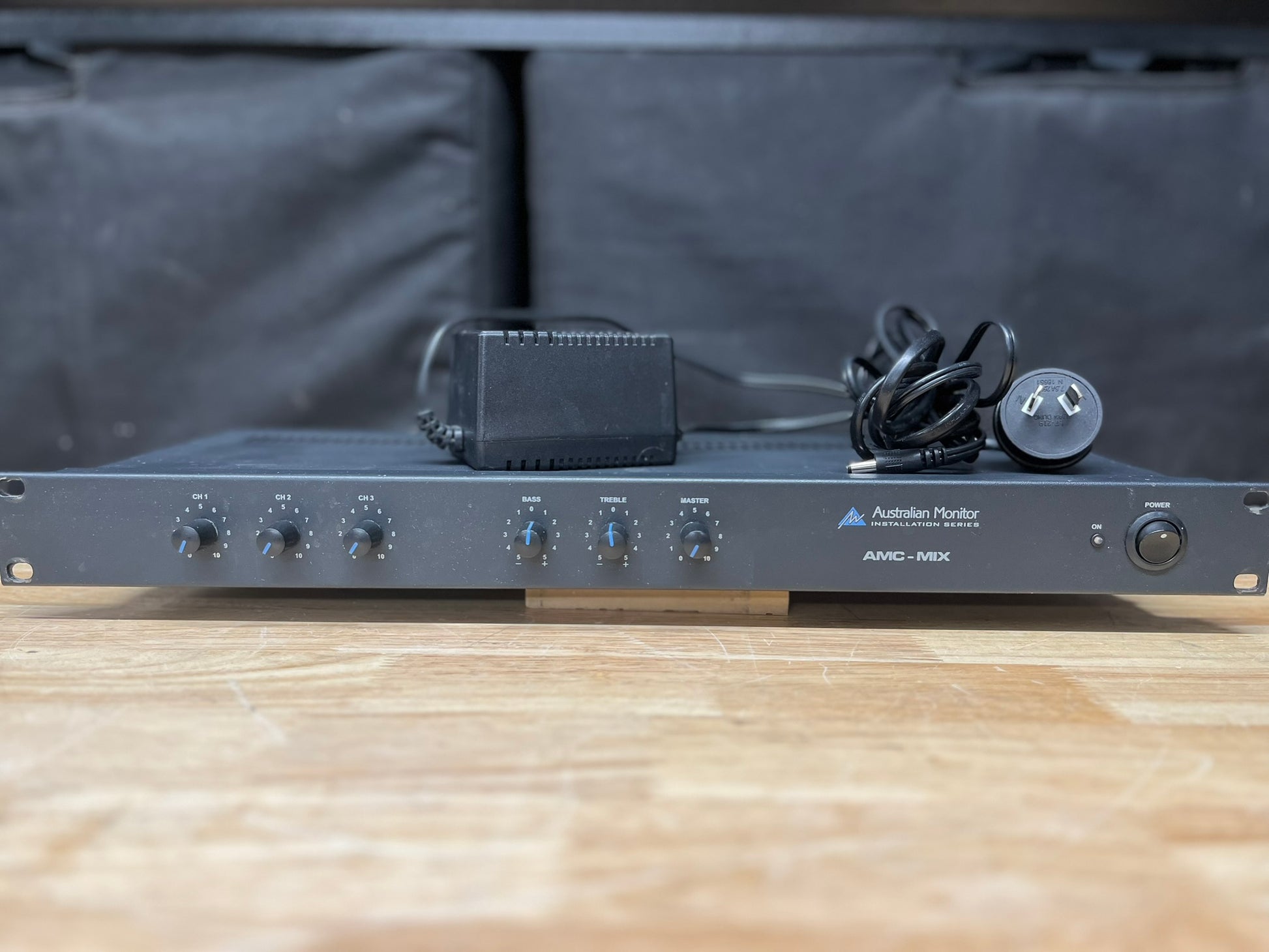

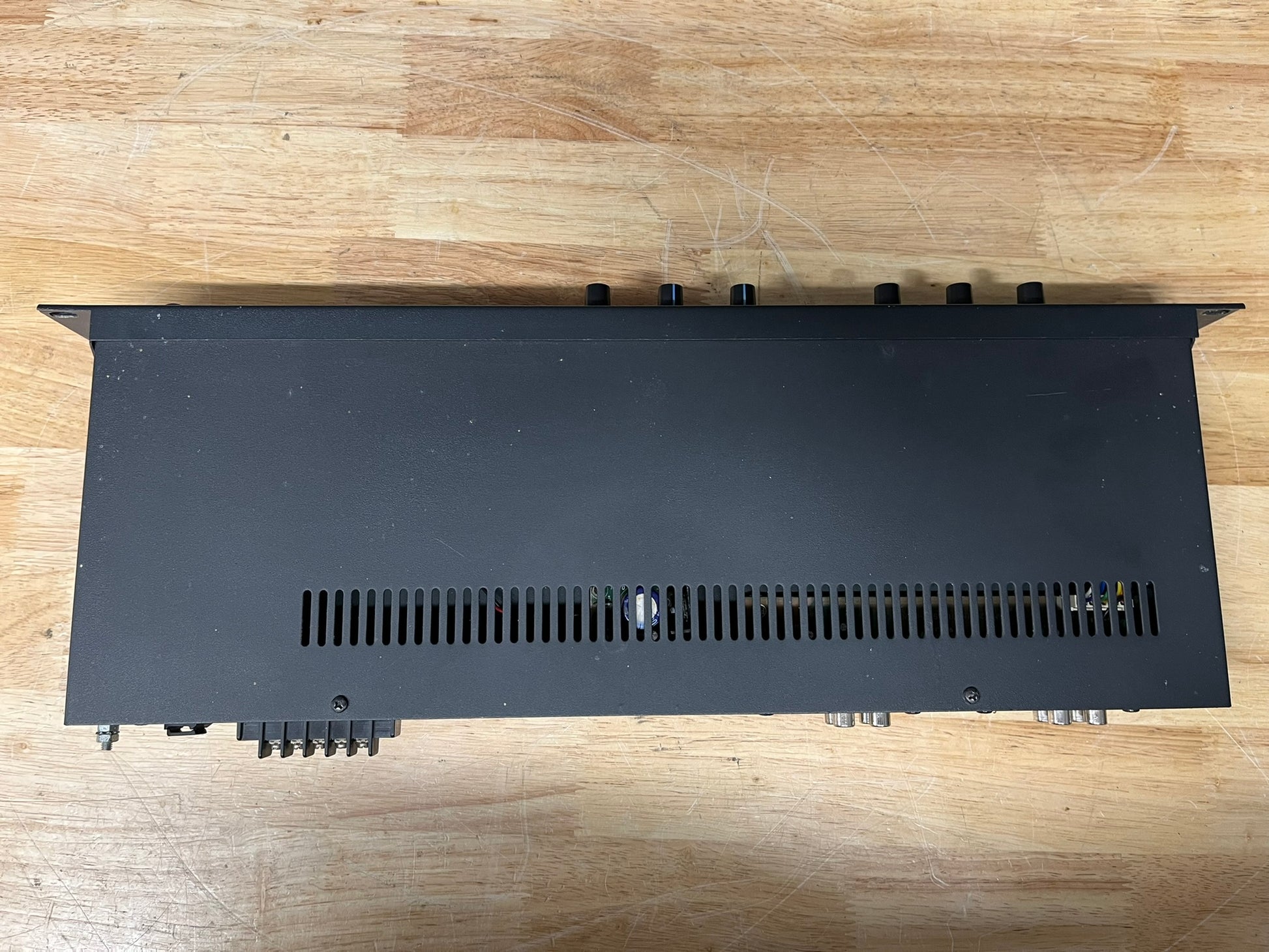

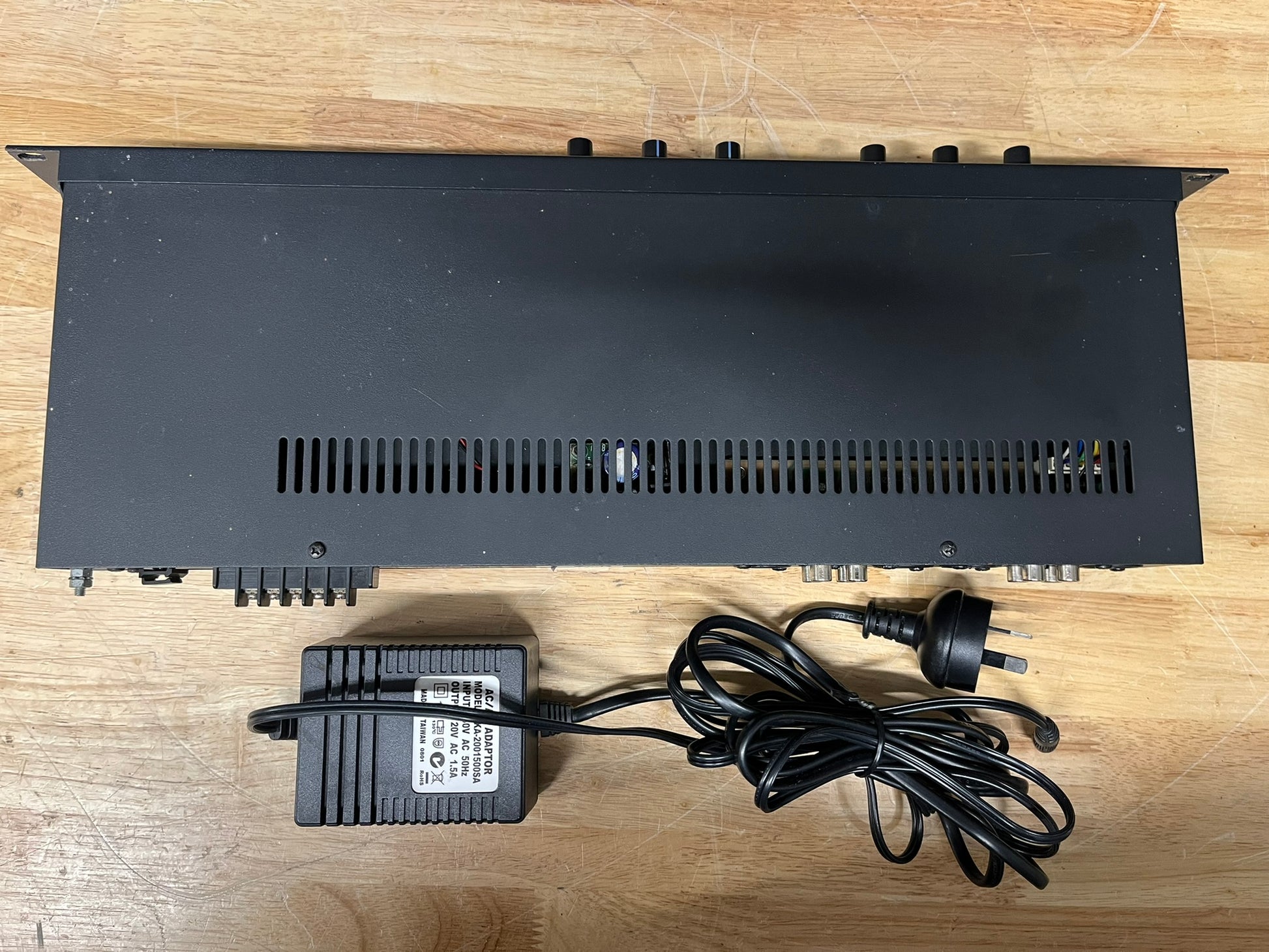

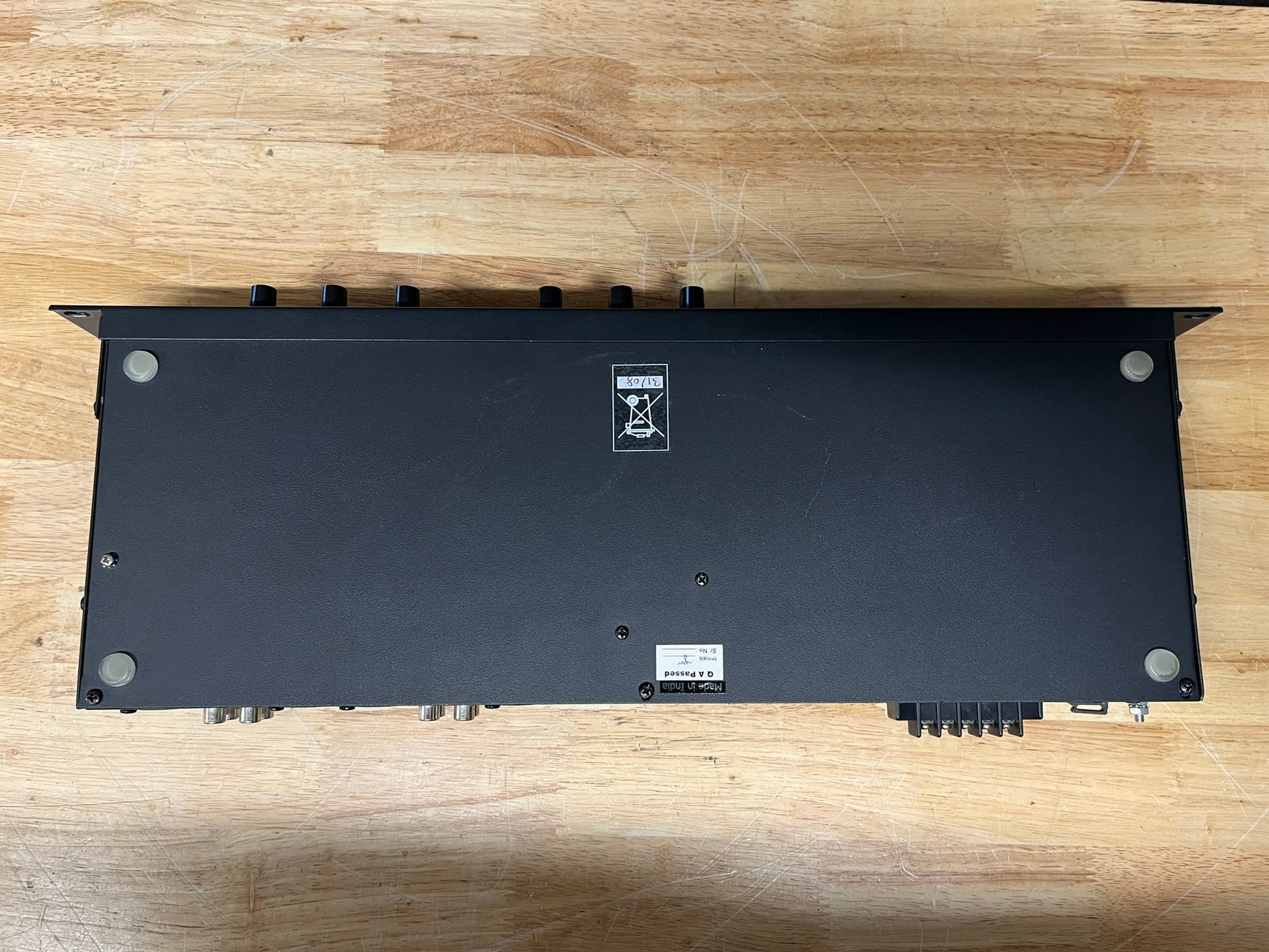

The AMC-MIX is a 1 RU mixer with 3 universal mic/line inputs. Master volume & overall treble & bass controls are provided, along with Vox triggered muting (defeatable), giving channel 1 priority over inputs 2 & 3. There is also the facility to add a tone generator card (not fitted).

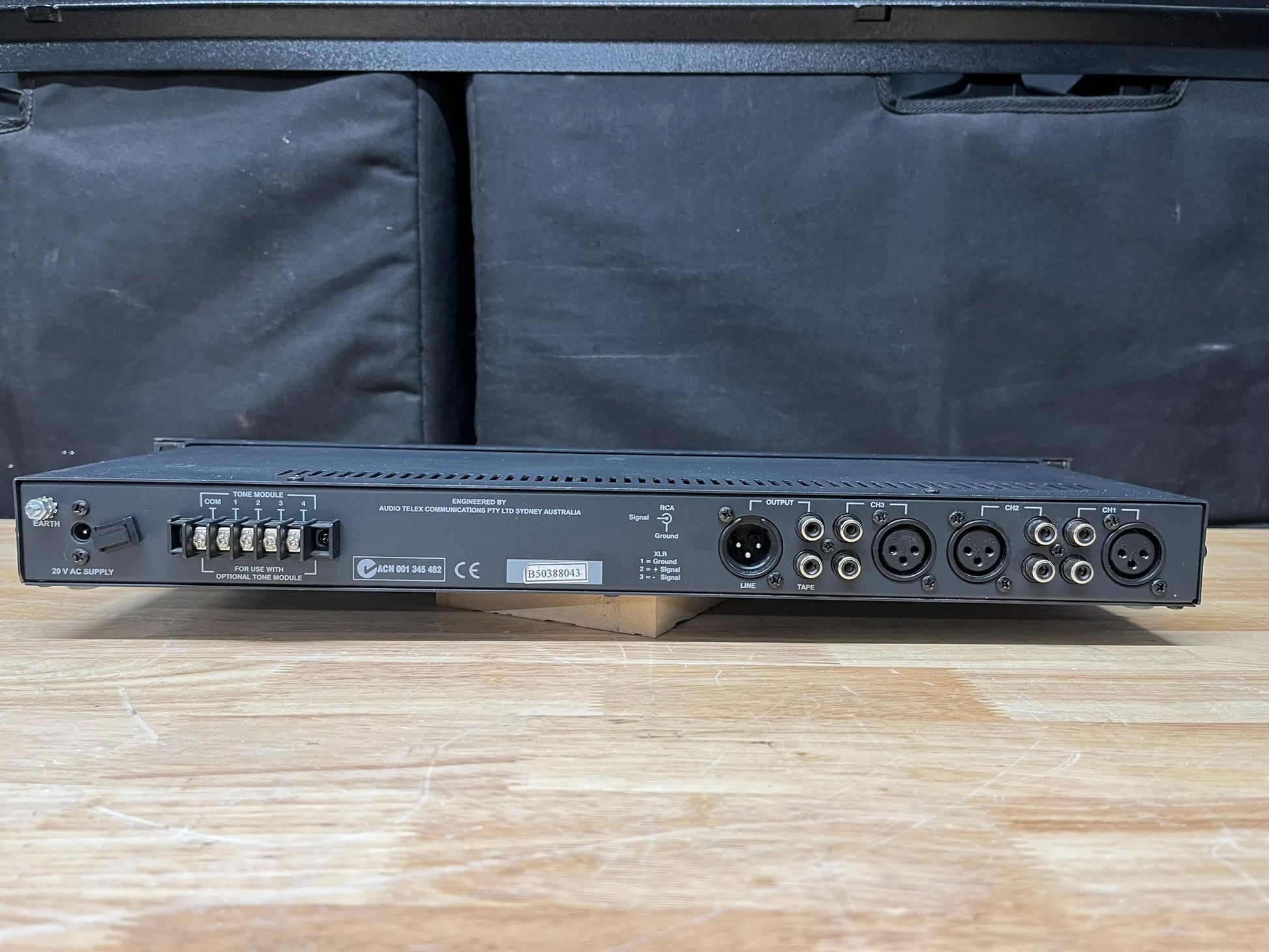

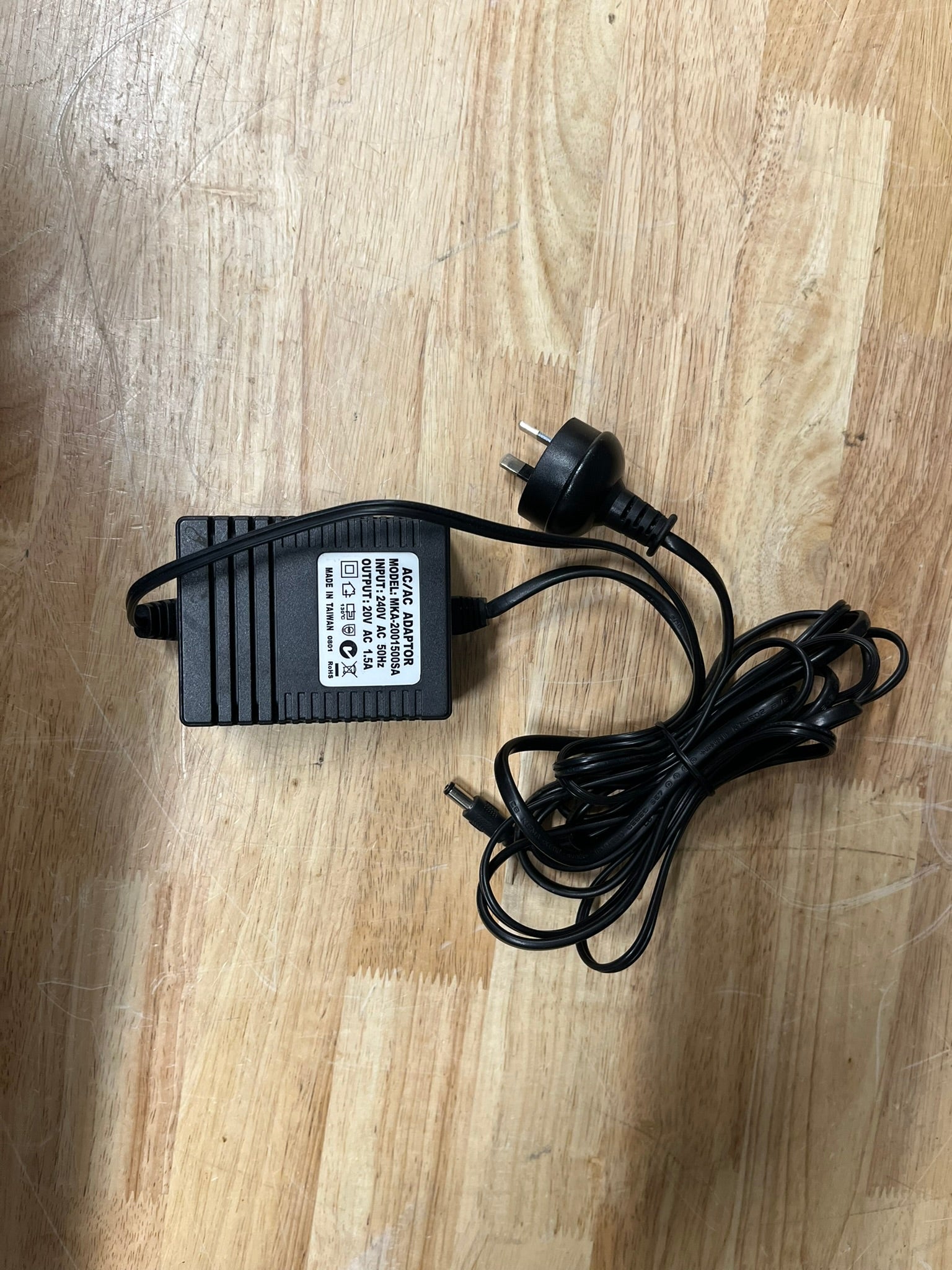

FREQUENCY RESPONSE 20Hz - 20kHz (+0,-3dB) TOTAL HARMONIC DISTORTION < 0.5% @ 1kHz SIGNAL TO NOISE RATIO > 84dB (all pots at centre position) CROSSTALK > 60dB TONE CONTROLS BASS @ 100HZ +/- 12dB TREBLE @ 10KHZ +/- 9dB SENSITIVITY Mic Sens 0.7mV, -61dBu Imp 1k3ohm RCA 500mV, -4dBu Imp >100kohm MAX LEVEL IN XLR mic -20dBu RCA >30dBu MAX LEVEL OUT +14dBu OUTPUTS MASTER OUT Nominal Level 0dBu into 1kohm Imp 100ohm MONO TAPE OUT Nom -16dB into 10kohm Imp 10kohm POWER INPUT 20V AC via 2.1mmx5.5mm barrel socket POWER CONSUMPTION (MAX) 7 VA
